Luminescent Identification of Functional Elements in 3'UTRs: 3'LIFE



The 3'LIFE is an adaptation of the well-characterized dual luciferase reporter assay, and performed in high-throughput (HT). 3'LIFE rapidly identifies functional targets of a given miRNA in a panel of thousands of test 3'UTRs in co-transfection experiments.
3'LIFE uses two specially designed vectors to express the test 3'UTRs (pLIFE-3'UTR) and the miRNA (pLIFE-miRNA)



ORDER THE 3'-LIFE VECTORS HERE and HERE.

DETAILED 3'-LIFE PROTOCOL HERE

EXCEL SPREADSHEETS FOR 3'LIFE ASSAY HERE and HERE

pasted-graphic-3 UPDATED EXCEL SPREADSHEET TEMPLATE FOR 3'LIFE ASSAY

pasted-graphic-31,461 Human 3'UTR clones ready for the 3’LIFE screen are now available HERE

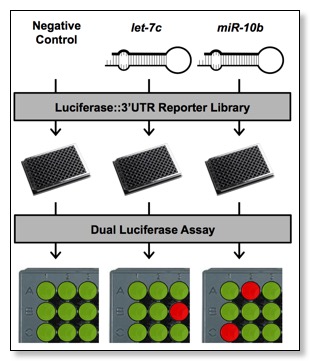

Screen Shot 2014-06-24 at 6.38.41 AM
In the pLIFE-3'UTR vector, two luciferase genes were cloned into the same plasmid to prevent fluctuations in their molar ratios across separate transfections. We have also included a Gateway-compatible recombination cassette (GW) cloned downstream of the Firefly luciferase gene to efficiently shuttle test 3'UTRs into the pLIFE-3'UTR vector. In the pLIFE-miRNA vector, the miRNA is cloned within an intron in the 3'UTR of the red fluorescent protein, dually functioning as a marker for transfection efficiency and miRNA expression.

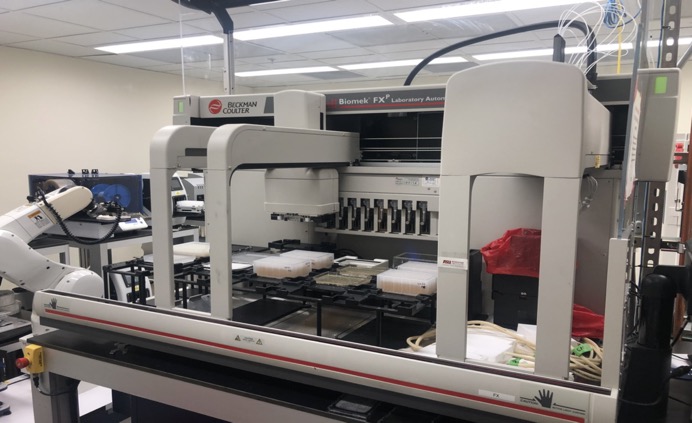

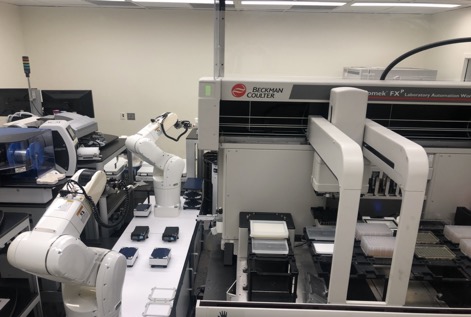

Currently the feasibility of high-throughput dual luciferase assays is limited by high costs associated with transfection and luciferase assay reagents, and the lack of a publicly available human 3'UTR library. Furthermore, genome-wide screens for miRNA targets are challenged by the need for appropriate high-throughput technologies and pipelines. To overcome these limitations, we have designed each step of the 3'UTR cloning pipeline and the 3'LIFE assay to be highly automated. PCR, cloning, plasmid DNA preparation, cell culture, transfection, and luciferase assays are performed in 96-well format using multi-channel micropipettes, dedicated liquid handling robots, and other high-throughput instrumentation. We have spent significant effort on cost reduction. We have optimized construct transfections in HEK293T cells, which are efficiently transfected in reusable 96-well nucleofection plates, and developed a series of buffers for use with the nucleofection hardware, virtually eliminating the cost of consumable transfection reagents. We also reduced the cost of the luciferase assay ~95% by creating in-house luciferase buffers. These cost-effective strategies will permit 3'UTR library expansion, additional screens for miRNA targets, and significantly increase the scope of data obtained by this project.

As a result of these developments, 3'LIFE overcomes the current limitations of scalability and resolution, allowing for the first time the systematic and unbiased identification of miRNA targets. Importantly, 3'LIFE conveys several advantages over current methods. First, 3'LIFE is a comprehensive screen because it identifies all functional elements present in each 3'UTR that are targeted by the query miRNA. Second, 3'LIFE is unbiased, since it probes one interaction at a time and does not rely on prior assumptions about target genes. Third, the luciferase reporter requires direct inhibition of the 3'UTR in the presence of the miRNA, eliminating indirect regulation frequently detected by mRNA and protein based approaches. Fourth, 3'LIFE discriminates between functional and non-functional miRNA target sites (see preliminary results below). Lastly, 3'LIFE can be adapted to detect other functional elements in 3'UTRs that are targeted by non-coding RNAs and RNA binding proteins. 3'LIFE provides rapid detection and initial validation of direct miRNA/3'UTR target interactions at a scale not possible with current methods.
